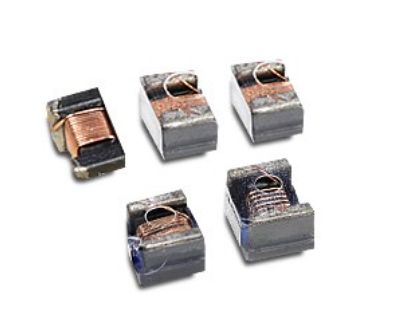

绕线式电感器
产品特色
- Wide inductance range (20nH~470μH) for broad band and RF application.
- Parts shown are the new ROHS-compliant version.
- Excellent solder ability.
- Outstanding endurance from pull-up force, mechanical shock and pressure.
- Undergo stringent quality control system and manufacturing plants.
应用领域
- RF products：Cellular phone (CDMA/ GSM/ PHS) / Cordless phone (DECT/ CT1/ CT2) / VCO, RF module & other wireless products.
- Broad Band applications：CATV filter, tuner / Cable modem/ XDSL tuner.
- Home Electronics：Digital TV,PDP,Digital Camera,DVD Recorder.
<< 返回上一页
Standard Type
| Series | L(nH) | DCR(mΩ) | IDC(mA) | SRF Range (Min MHz) | LxWxH(mm) Max |
|---|
| 0805CS | 120 ~ 10000 | 180 ~ 4500 | 180 ~ 1100 | 30 ~ 900 | 2.29x1.71x1.45 |
| 0805CT | 1000 ~ 15000 | 90 ~ 5000 | 300 ~ 450 | 28 ~ 115 | 2.29x1.73x1.00 |
Standard Type
| Series | L(nH) | DCR(mΩ) | IDC(mA) | SRF Range (Min MHz) | LxWxH(mm) Max |
|---|
| 0805CS | 120 ~ 10000 | 180 ~ 4500 | 180 ~ 1100 | 30 ~ 900 | 2.29x1.71x1.45 |
| 0805CT | 1000 ~ 15000 | 90 ~ 5000 | 300 ~ 450 | 28 ~ 115 | 2.29x1.73x1.00 |
